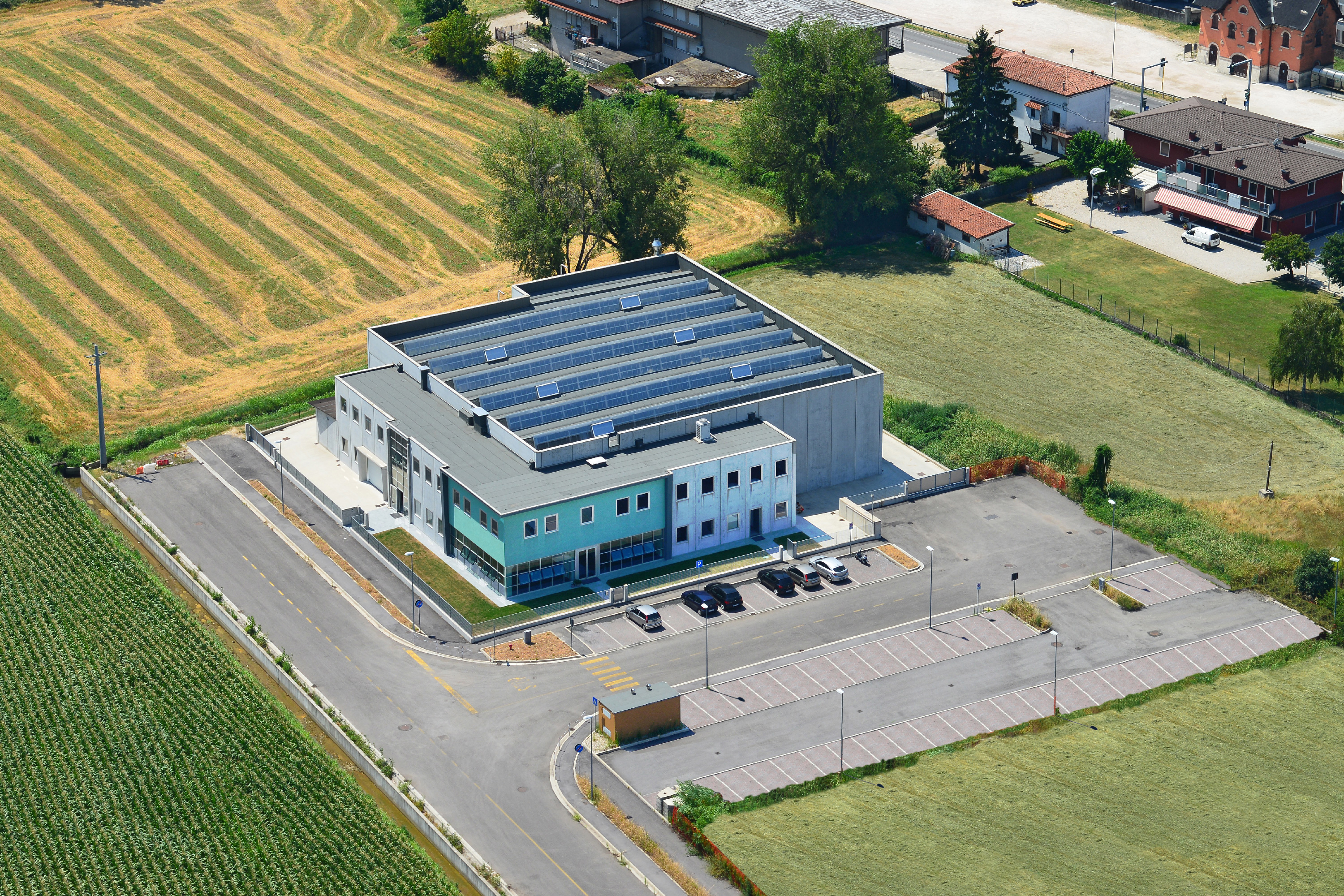

Our production area extends for 1500 square meters and is structured in departments dedicated to the peculiar processes of assembly, automatic welding and turning. We also count a prototype area and internal workshop dedicated to the production of special equipment. The plants have a high degree of automation and control in order to guarantee efficient production with a high-quality standard. The range of components produced is very wide and the production lots are very variable to cope with variable demand in number and reordering time.
The production part is also supported by a technical office equipped with modeling and design software for particular needs, as well as CN PartProgram design for special machining on stator-rotor packs.

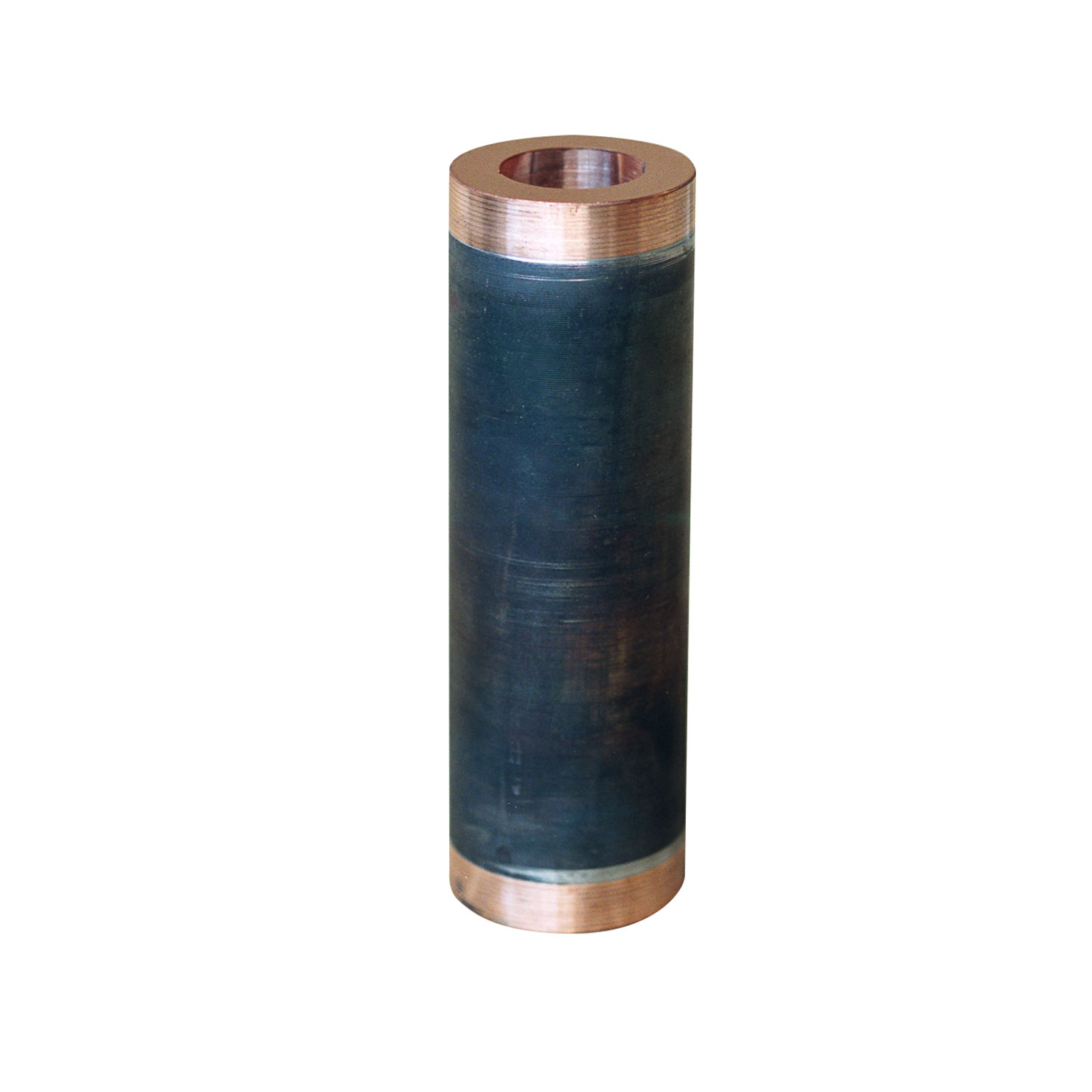

- Item: Submersible pump rotor (no shaft)
- Dimensions D: 3’’ - 4’’ - 6’’ - 8’’
- Dimensions H: 160-900 mm
- Pack inclination: possible
- Lamination draw: Commercial/Custom

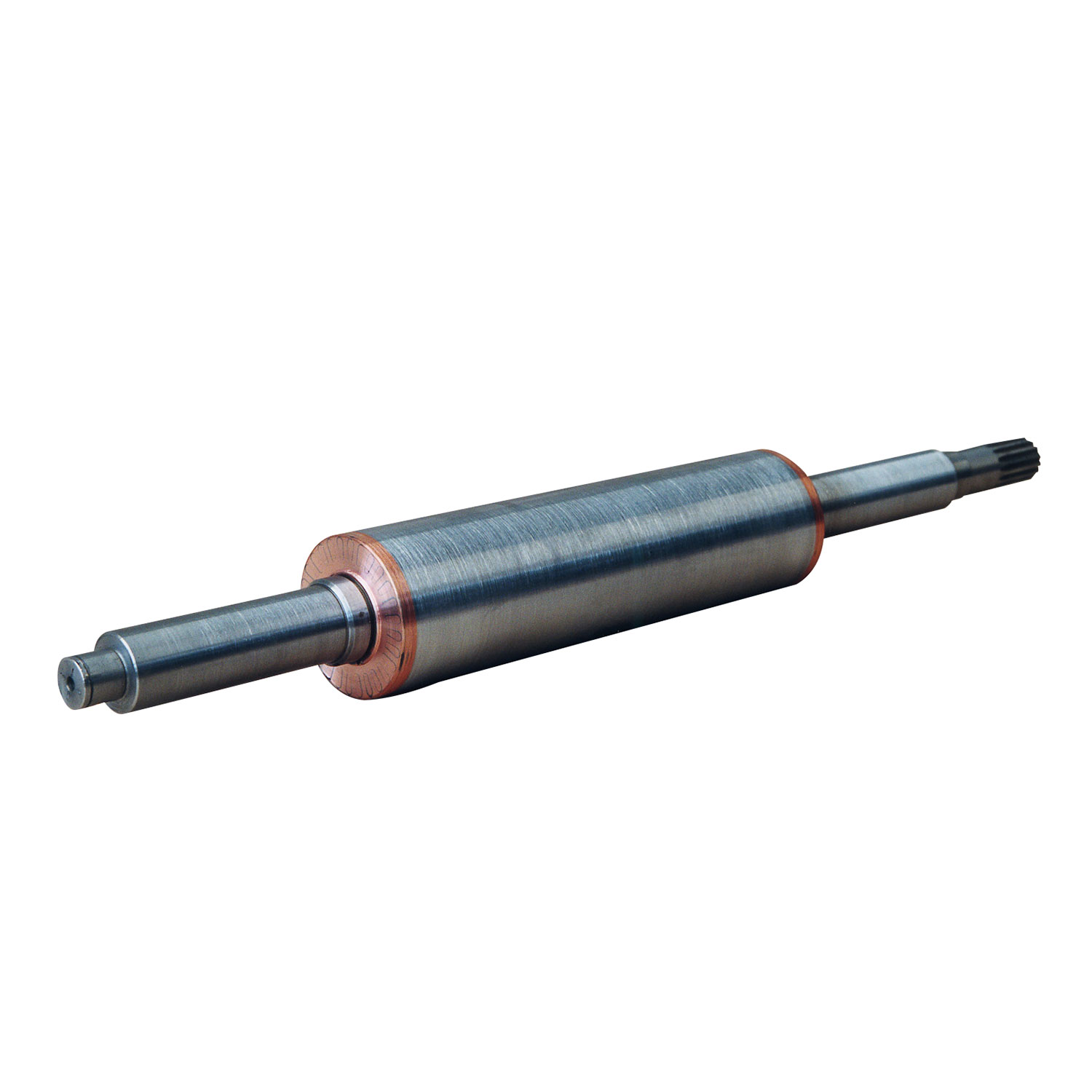

- Item: Submersible pump rotor (shaft)
- Dimensions D: 6’’ - 8’’ - 10’’ - 12’’ - 14’’
- Dimensions H: 120-1500 mm
- Pack inclination: possible
- Lamination draw: Commercial/Custom

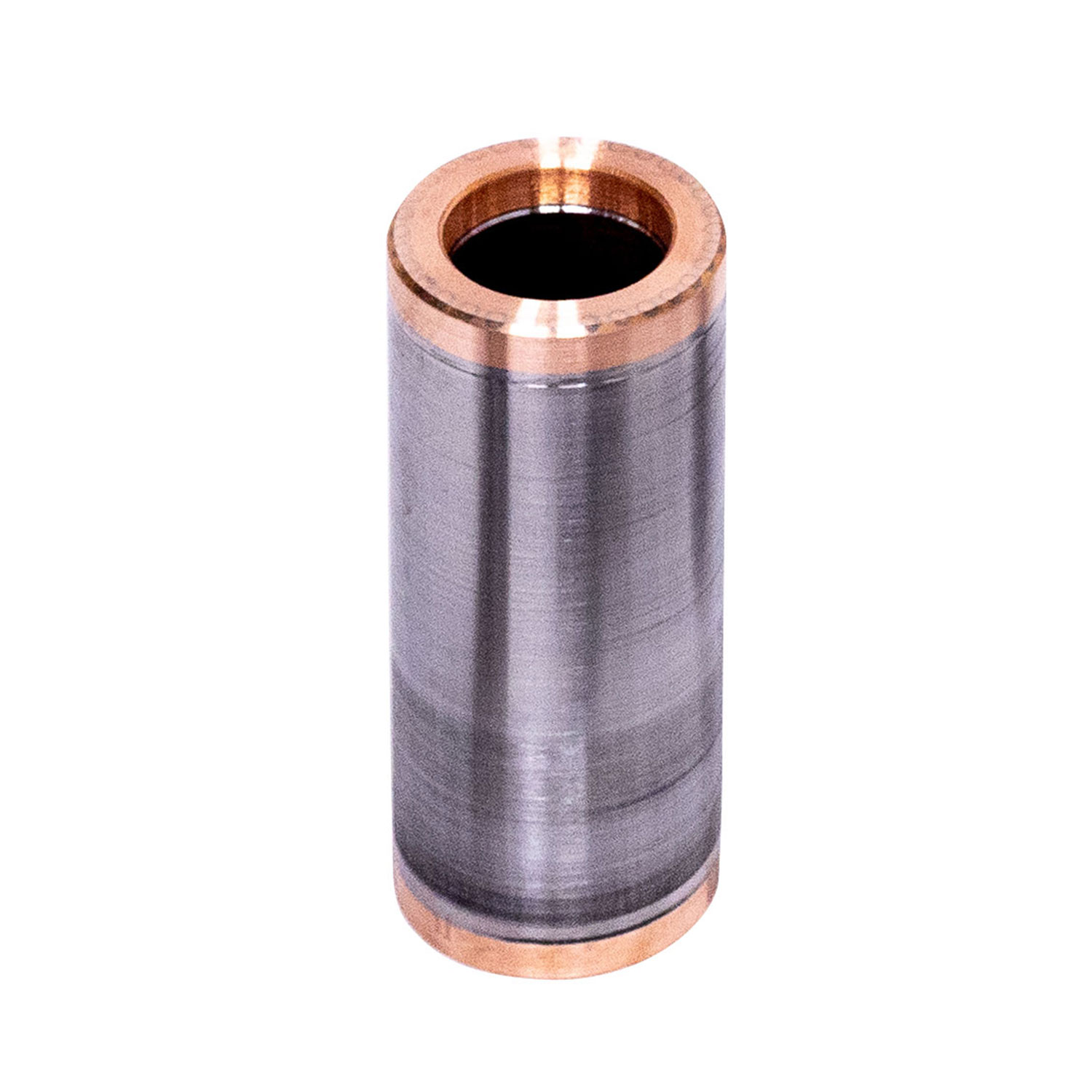

- Item: High-frequency electrospindle rotor
- Dimensions D: 20-100mm
- Dimensions H: 30-240 mm
- Pack inclination: possible
- Lamination draw: Commercial/Custom

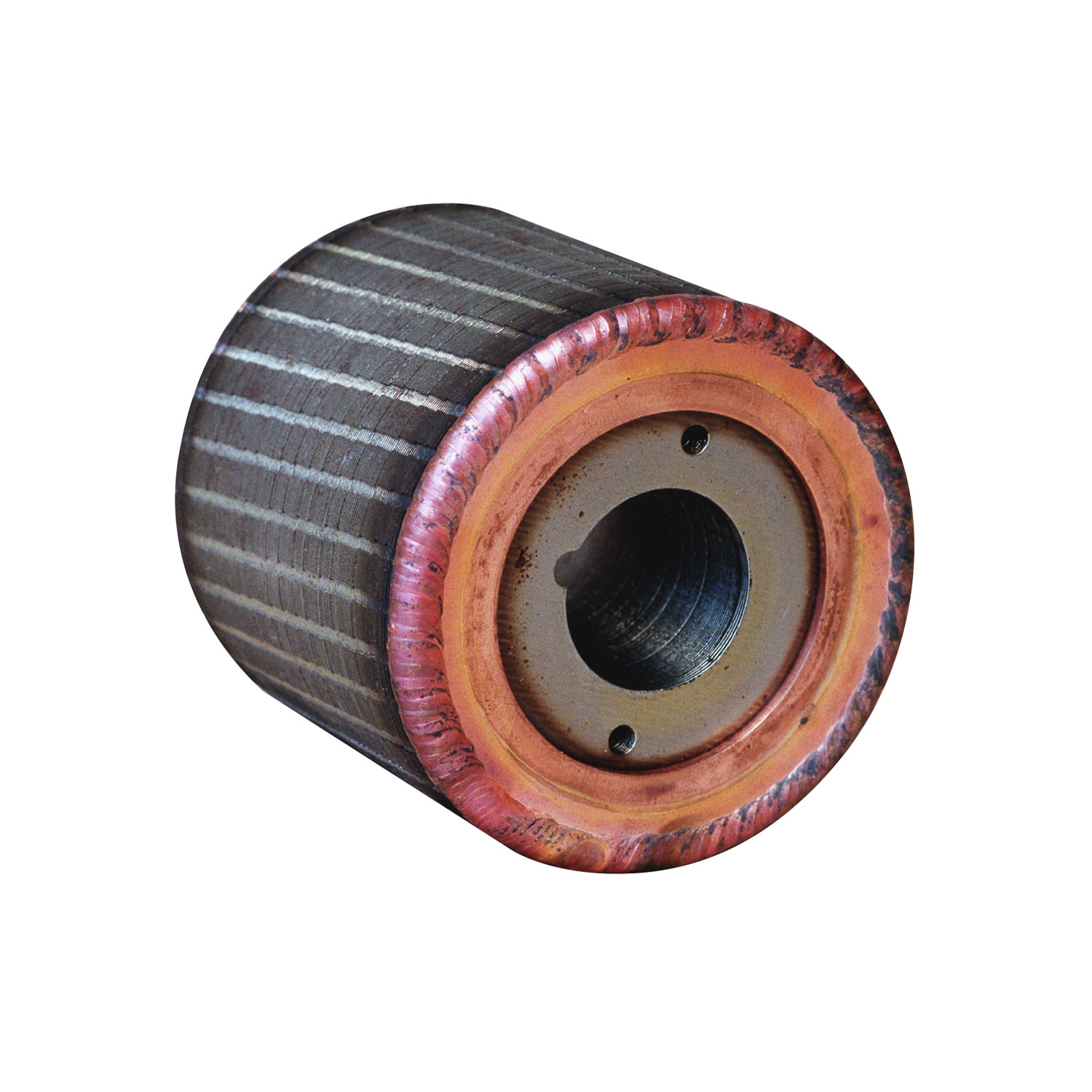

- Item: Circulator rotor
- Dimensions D: 45-80
- Dimensions H: 50-120 mm
- Pack inclination: possible
- Lamination draw: Commercial/Custom

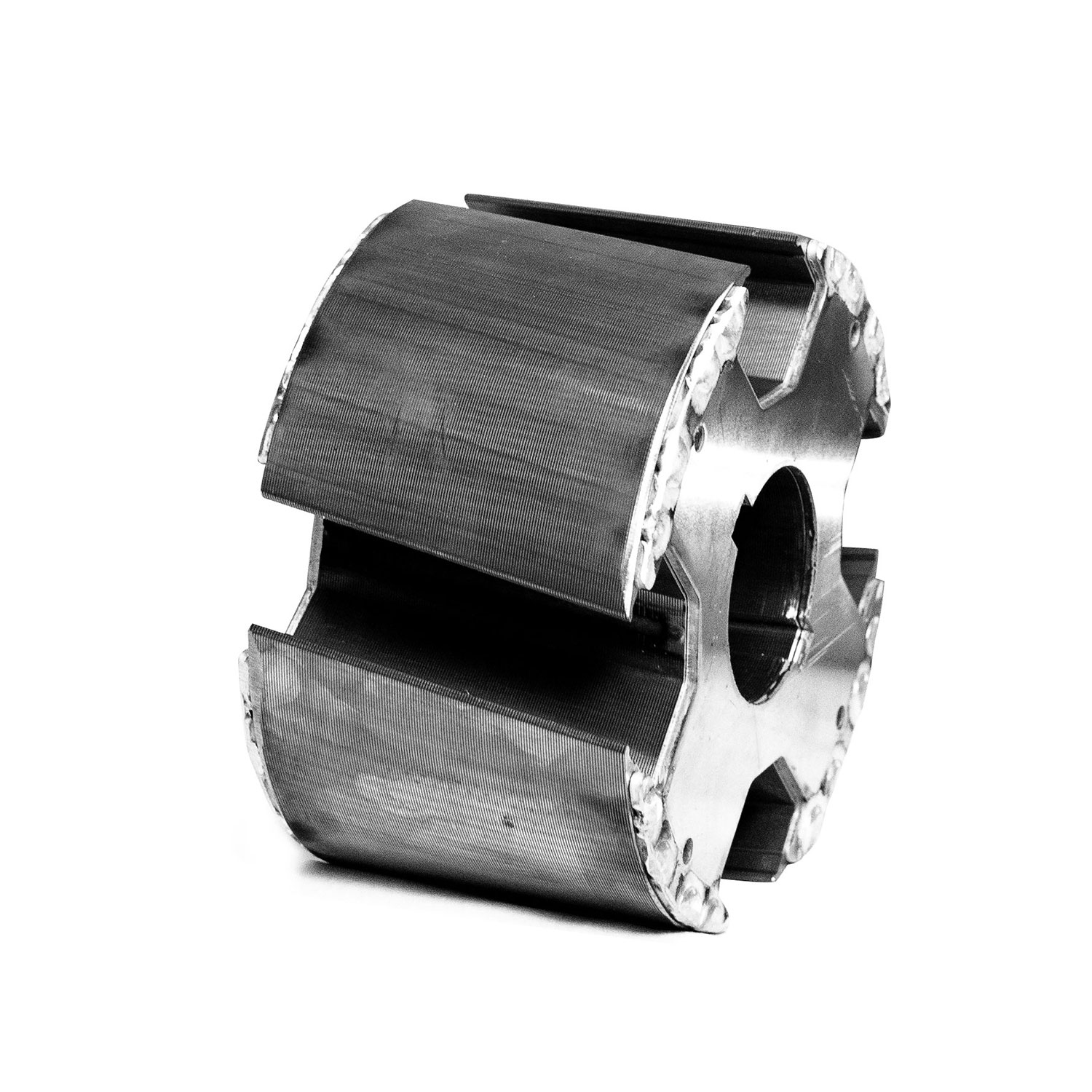

- Item: Alternator rotor
- Dimensions D: 102-210
- Dimensions H: 50-350 mm
- Pack inclination: possible
- Lamination draw: Commerciale/Custom

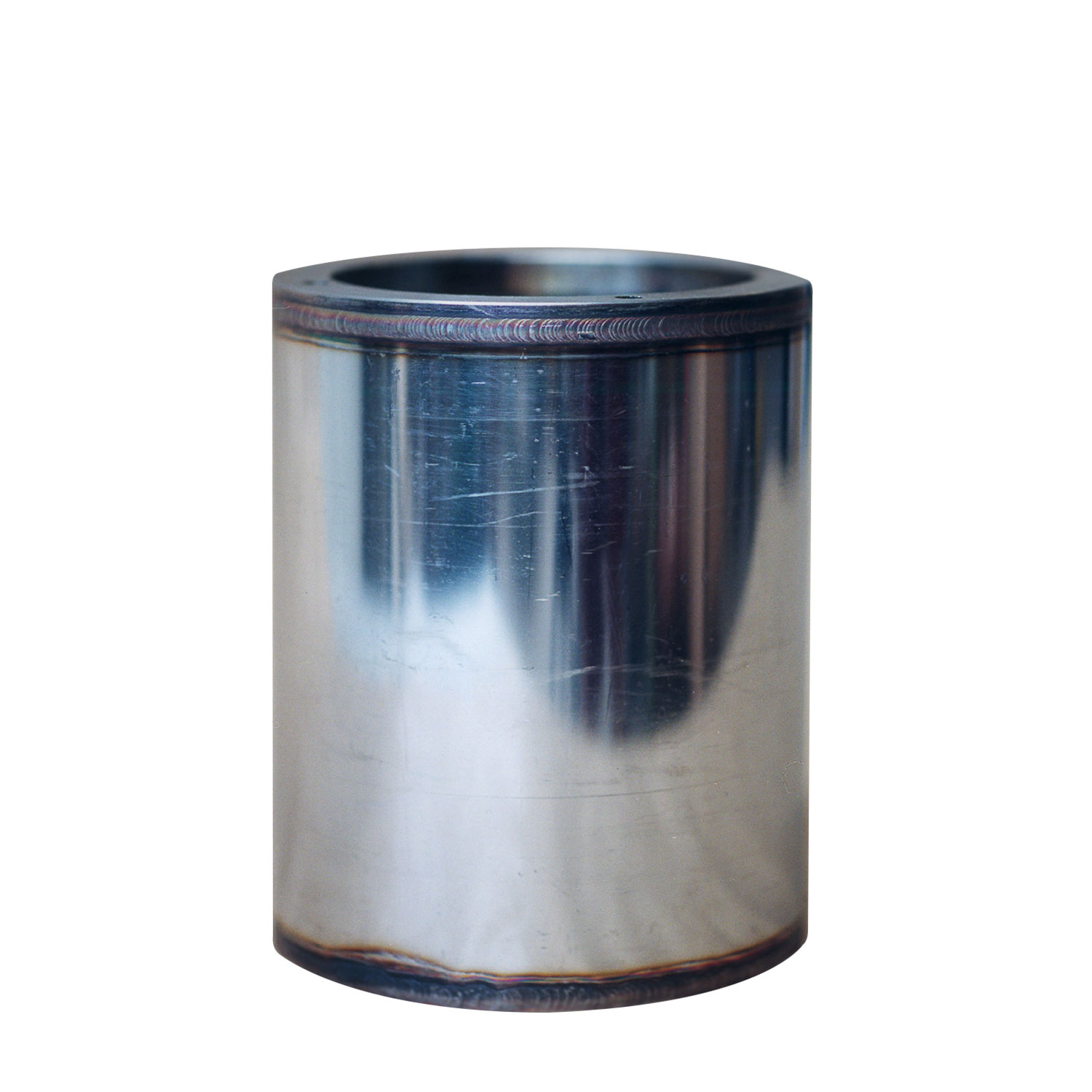

- Item: Statore motore sommerso
- Diameter: 6’’ - 8’’ - 10’’ - 12” - 14”
- Max dimensions H: 900mm (also with steel tube)
- Pack inclination: si
- Lamination draw: Commercial/Custom (also with welded and turned flanges)
- Welds: TIG-MIG - 4 + welds (also sloped)

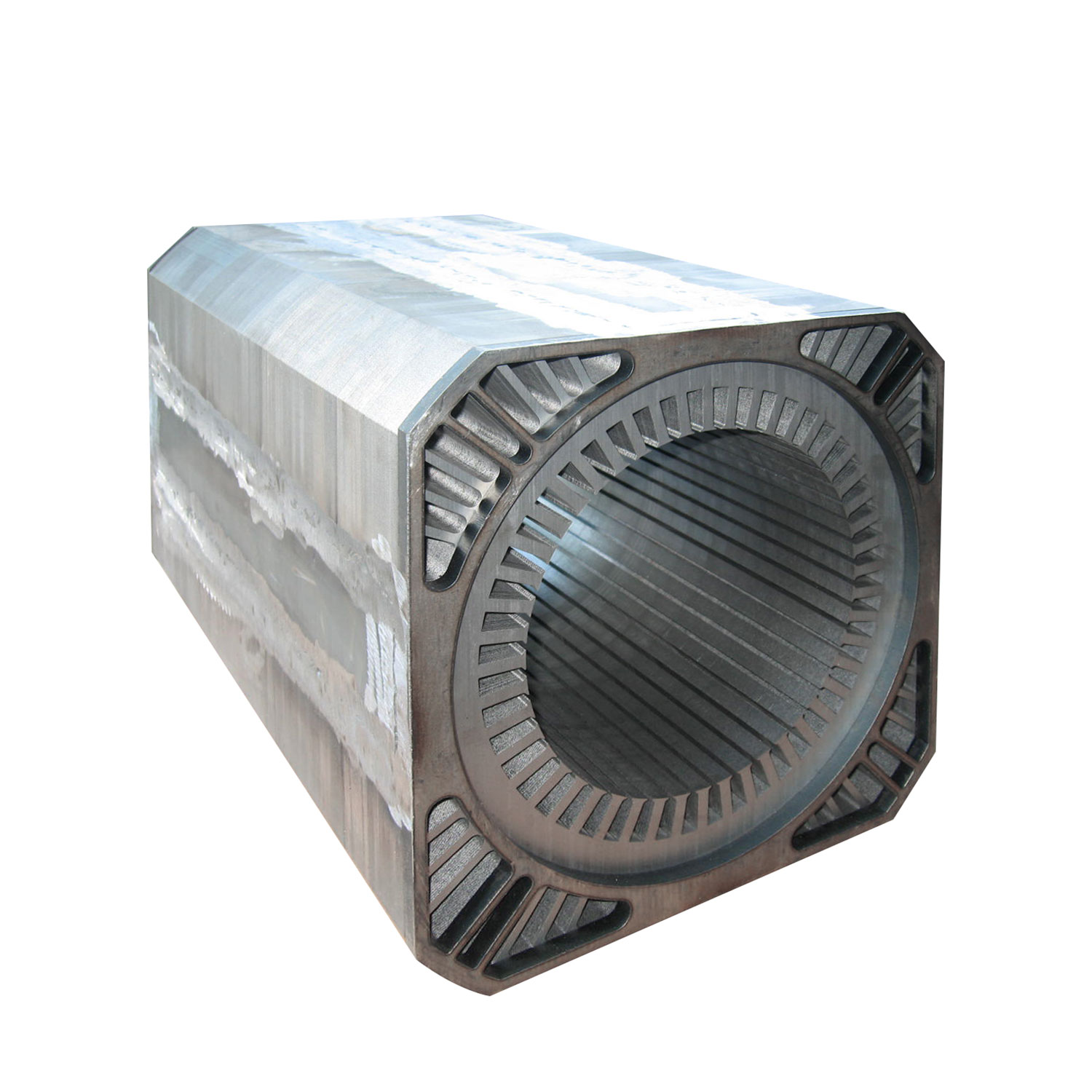

- Item: Stator (square lamination shape)
- Side: 50 - 460 mm
- Max Dimensions H: 650 mm
- Pack inclination: no
- Lamination draw: Commercial/Custom (Also with welded flanges and pick means)
- Welds: TIG-MIG - Up to 12
- Item: Alternator stator
- Dimensions D: da 150 a 315 mm
- Dimensions H: 50-350 mm
- Pack inclination: possible
- Lamination draw: Commercial/Custom
- Welds: TIG - Up to 8
